• SK高轉速精密筒夾刀桿

SK高轉速精密筒夾刀桿

型號 : BT-SK

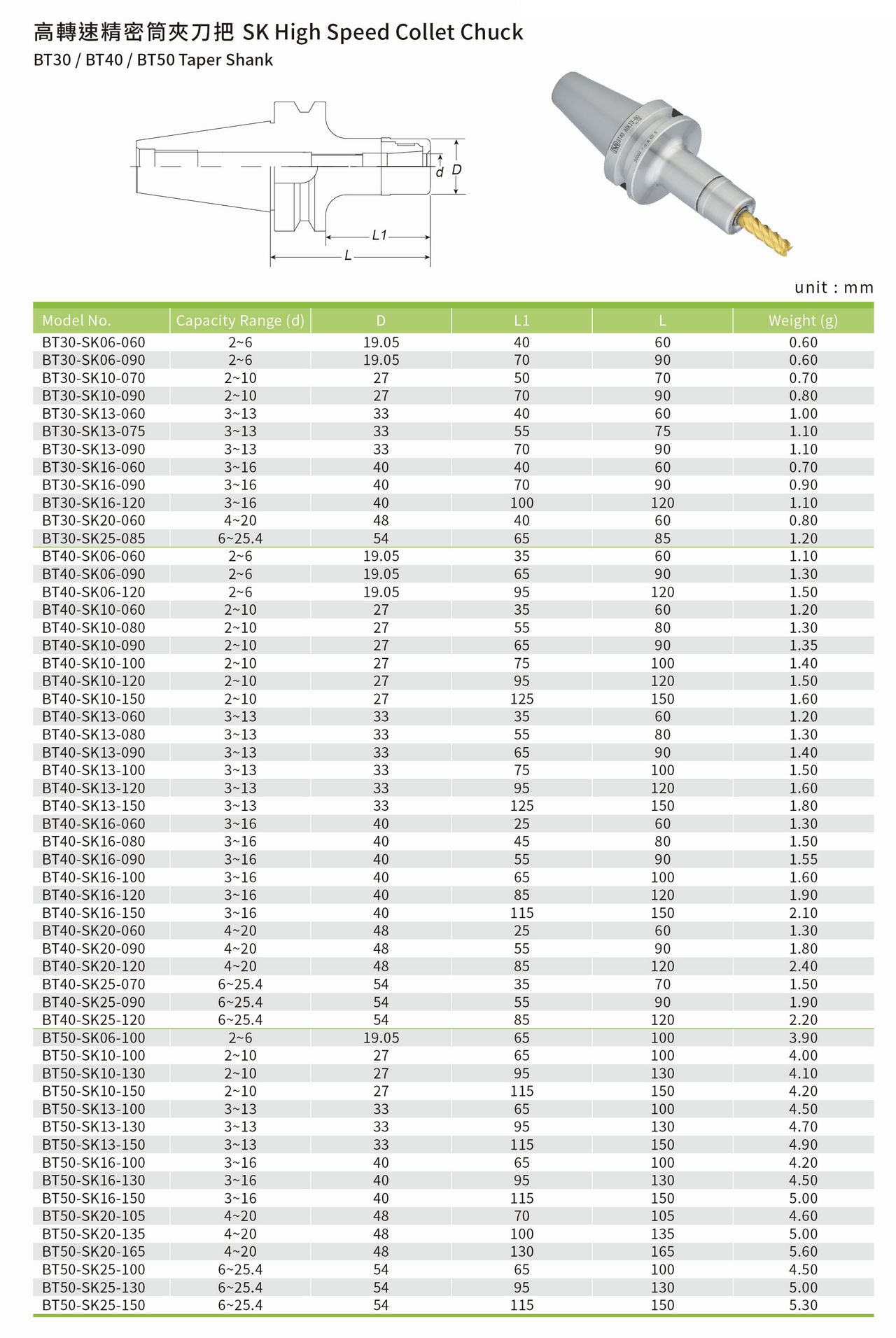

高轉速精密筒夾刀桿 SK High Speed Collet Chuck


高轉速精密筒夾刀桿 SK High Speed Collet Chuck


Model No.

Capacity Range (d)

D

L1

L

Weight (g)

BT30-SK06-60

2~6

19.05

40

60

0.6

BT30-SK06-90

2~6

19.05

70

90

0.6

BT30-SK10-70

2~10

27

50

70

0.7

BT30-SK10-90

2~10

27

70

90

0.8

BT30-SK13-60

3~13

33

40

60

1

BT30-SK13-75

3~13

33

55

75

1.1

BT30-SK13-90

3~13

33

70

90

1.1

BT30-SK16-60

3~16

40

40

60

0.7

BT30-SK16-90

3~16

40

70

90

0.9

BT30-SK16-120

3~16

40

100

120

1.1

BT30-SK20-60

4~20

48

40

60

0.8

BT30-SK25-85

6~25.4

54

65

85

1.2

BT40-SK06-60

2~6

19.05

35

60

1.1

BT40-SK06-90

2~6

19.05

65

90

1.3

BT40-SK06-120

2~6

19.05

95

120

1.5

BT40-SK10-60

2~10

27

35

60

1.2

BT40-SK10-80

2~10

27

55

80

1.3

BT40-SK10-90

2~10

27

65

90

1.35

BT40-SK10-100

2~10

27

75

100

1.4

BT40-SK10-120

2~10

27

95

120

1.5

BT40-SK10-150

2~10

27

125

150

1.6

BT40-SK13-60

3~13

33

35

60

1.2

BT40-SK13-80

3~13

33

55

80

1.3

BT40-SK13-90

3~13

33

65

90

1.4

BT40-SK13-100

3~13

33

75

100

1.5

BT40-SK13-120

3~13

33

95

120

1.6

BT40-SK13-150

3~13

33

125

150

1.8

BT40-SK16-60

3~16

40

25

60

1.3

BT40-SK16-80

3~16

40

45

80

1.5

BT40-SK16-90

3~16

40

55

90

1.55

BT40-SK16-100

3~16

40

65

100

1.6

BT40-SK16-120

3~16

40

85

120

1.9

BT40-SK16-150

3~16

40

115

150

2.1

BT40-SK20-60

4~20

48

25

60

1.3

BT40-SK20-90

4~20

48

55

90

1.8

BT40-SK20-120

4~20

48

85

120

2.4

BT40-SK25-70

6~25.4

54

35

70

1.5

BT40-SK25-90

6~25.4

54

55

90

1.9

BT40-SK25-120

6~25.4

54

85

120

2.2

BT50-SK06-100

2~6

19.05

65

100

3.9

BT50-SK10-100

2~10

27

65

100

4

BT50-SK10-130

2~10

27

95

130

4.1

BT50-SK10-150

2~10

27

115

150

4.2

BT50-SK13-100

3~13

33

65

100

4.5

BT50-SK13-130

3~13

33

95

130

4.7

BT50-SK13-150

3~13

33

115

150

4.9

BT50-SK16-100

3~16

40

65

100

4.2

BT50-SK16-130

3~16

40

95

130

4.5

BT50-SK16-150

3~16

40

115

150

5

BT50-SK20-105

4~20

48

70

105

4.6

BT50-SK20-135

4~20

48

100

135

5

BT50-SK20-165

4~20

48

130

165

5.6

BT50-SK25-100

6~25.4

54

65

100

4.5

BT50-SK25-130

6~25.4

54

95

130

5

BT50-SK25-150

6~25.4

54

115

150

5.3

相關產品

R8-ER彈性筒夾刀桿

R8-ER彈性筒夾刀桿

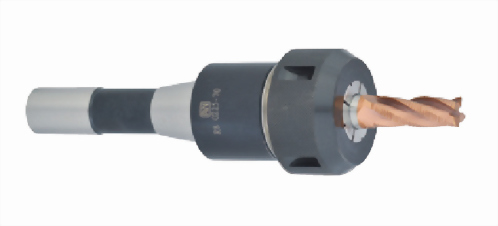

R8-OZ彈性筒夾刀桿

R8-OZ彈性筒夾刀桿

BT直結式鑽夾頭刀桿

BT直結式鑽夾頭刀桿

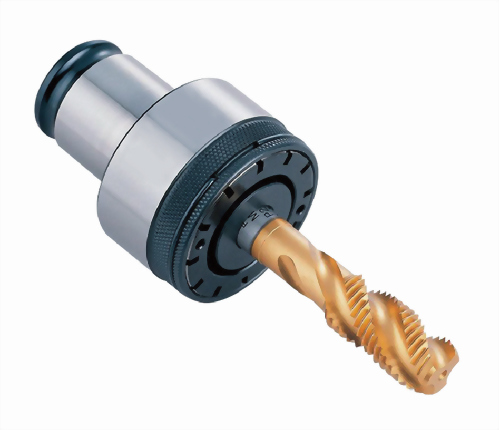

快換式絲攻夾頭-扭力型
