微小徑仿型車削鎢鋼內徑車刀 GP_R
微小徑仿型車削鎢鋼內徑車刀 GP_R
Tiny Profiling Carbide Boring Bar
|

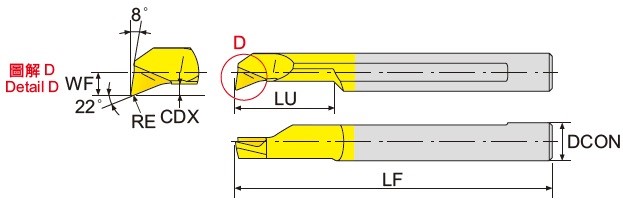

產品型號 |
最⼩ |
刃⾓Ｒ |
最⼤加⼯ |
柄部直徑 |
可使⽤ |
標準 |
⼯作 |
|
GP1RL104R005 |
1 |
0.05 |
0.2 |
3 |
4 |
39 |
0.5 |
|
GP1.5RL106R01 |
1.5 |
0.1 |
0.3 |
3 |
6 |
39 |
0.7 |
|
GP2RL110R005 |
2.1 |
0.05 |
0.5 |
3 |
10 |
39 |
0.8 |
|
GP2RL110R01 |
2.1 |
0.1 |
0.5 |
3 |
10 |
39 |
0.8 |
|
GP2RL105R015 |
2.1 |
0.15 |
0.5 |
3 |
5 |
39 |
0.8 |
|
GP2RL110R015 |
2.1 |
0.15 |
0.5 |
3 |
10 |
39 |
0.8 |
|
GP3RL110R005 |
3.1 |
0.05 |
0.7 |
3 |
10 |
39 |
1.3 |
|
GP3RL115R01 |
3.1 |
0.1 |
0.7 |
3 |
15 |
39 |
1.3 |
|
GP3RL122R01 |
3.1 |
0.1 |
0.7 |
3 |
22 |
50 |
1.3 |
|
GP3RL110R02 |
3.1 |
0.2 |
0.7 |
3 |
10 |
39 |
1.3 |
|
GP3RL115R02 |
3.1 |
0.2 |
0.7 |
3 |
15 |
39 |
1.3 |
|
GP3RL122R02 |
3.1 |
0.2 |
0.7 |
3 |
22 |
50 |
1.3 |
|
GP3RL115R05 |
3.1 |
0.5 |
0.7 |
3 |
15 |
39 |
1.3 |
|
GP4RL115R01 |
4.1 |
0.1 |
0.8 |
4 |
15 |
50 |
1.7 |
|
GP4RL122R01 |
4.1 |
0.1 |
0.8 |
4 |
22 |
50 |
1.7 |
|
GP4RL110R02 |
4.1 |
0.2 |
0.8 |
4 |
10 |
50 |
1.7 |
|
GP4RL115R02 |
4.1 |
0.2 |
0.8 |
4 |
15 |
50 |
1.7 |
|
GP4RL122R02 |
4.1 |
0.2 |
0.8 |
4 |
22 |
50 |
1.7 |
|
GP5RL122R01 |
5.1 |
0.1 |
1.2 |
5 |
22 |
50 |
2.1 |
|
GP5RL130R01 |
5.1 |
0.1 |
1.2 |
5 |
30 |
60 |
2.1 |
|
GP5RL115R02 |
5.1 |
0.2 |
1.2 |
5 |
15 |
50 |
2.1 |
|
GP5RL122R02 |
5.1 |
0.2 |
1.2 |
5 |
22 |
50 |
2.1 |
|
GP5RL130R02 |
5.1 |
0.2 |
1.2 |
5 |
30 |
60 |
2.1 |
|
GP6RL115R02 |
6.1 |
0.2 |
1.4 |
6 |
15 |
50 |
2.8 |
|
GP6RL122R02 |
6.1 |
0.2 |
1.4 |
6 |
22 |
50 |
2.8 |
|
GP6RL130R02 |
6.1 |
0.2 |
1.4 |
6 |
30 |
60 |
2.8 |
|
GP8RL115R02 |
8.1 |
0.2 |
1.6 |
8 |
15 |
60 |
3.8 |
|
GP8RL122R02 |
8.1 |
0.2 |
1.6 |
8 |
22 |
60 |
3.8 |
|
GP8RL135R02 |
8.1 |
0.2 |
1.6 |
8 |
35 |
75 |
3.8 |
|
GP10RL135R02 |
10.1 |
0.2 |
2 |
10 |
35 |
75 |
4.8 |
- 適用於專業醫療設備、電子、化學及工業等精密細小零件之製造加工
Suitable for manufacturing and processing of precision small parts such as professional medical equipment, electronics, chemistry and industry.
1. 微小徑鎢鋼內徑車刀採用全鎢鋼刀體，有效抑制加工震動
Tiny carbide boring bar adopts a full carbide cutter body to effectively suppress the processing vibration.
2. 採用超細粒子硬質合金AITiN塗層，增加刀具耐磨耗性
Ultra-fine particle cemented carbide AlTiN coating for increased tool wearability.
3. 微小徑設計有利於狹小孔徑空間工件之切槽、仿形及倒角等加工需求
The micro-diameter design is beneficial to the processing requirements of cutting, copying and chamfering of workpieces in narrow apertures.
4. 提供精確的加工精準度和良好表面光潔度
Provides precise machining accuracy and good surface finish.
