高速精密車床

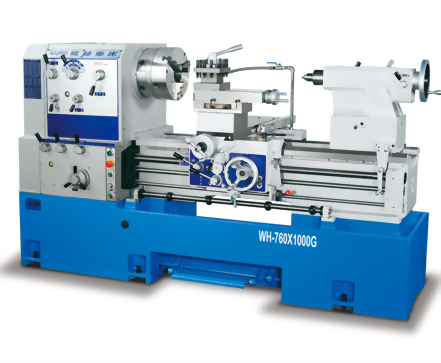

高速精密車床 L 系列

型號 : LATHE L

數量 :

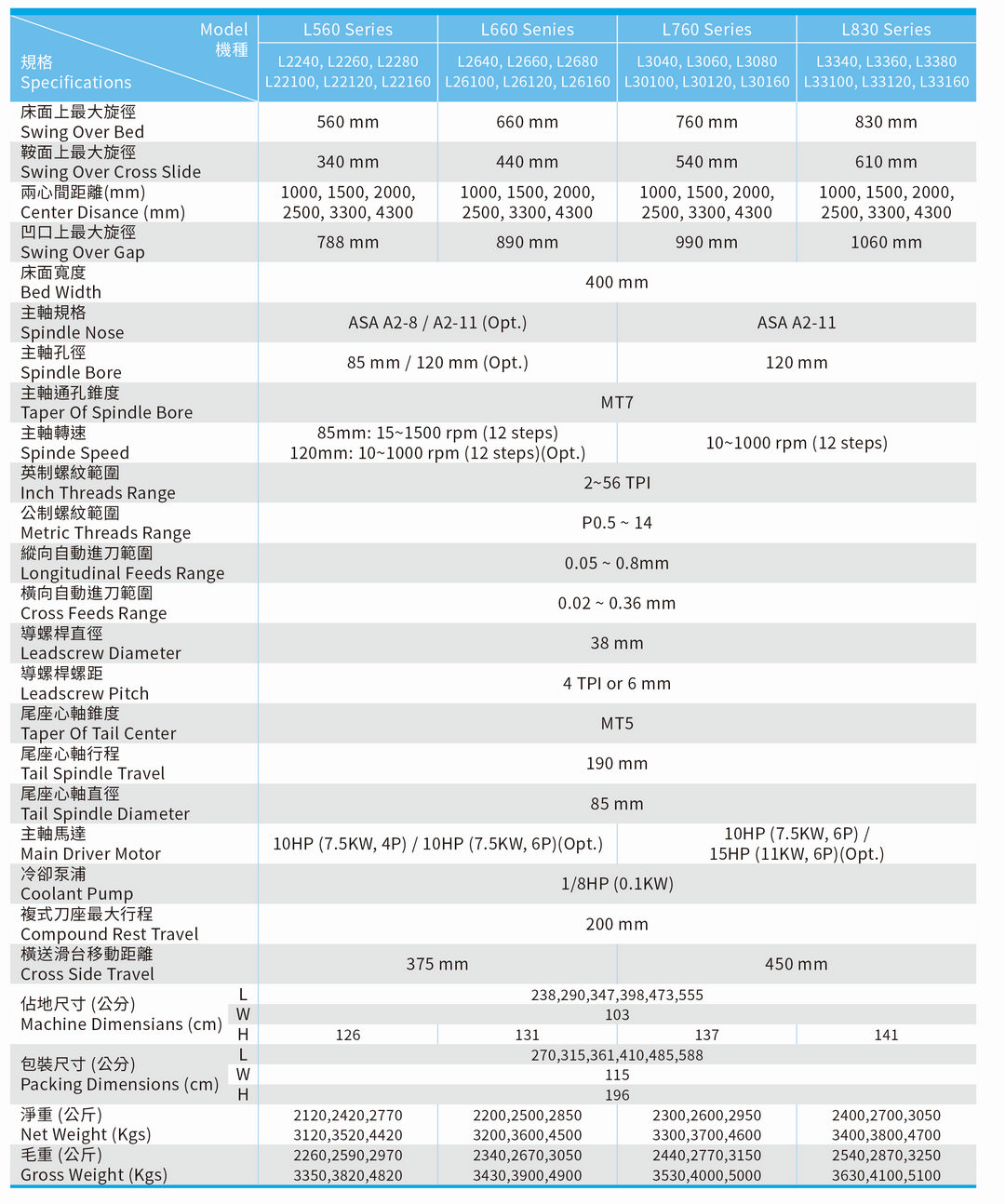

SPECIFICATIONS

L 560 SERIES

L560 Series
Specifications / Model	L2240	L2260	L2280	L22100	L22120	L22160
Swing Over Bed	560 mm (22")
Swing Over Cross Slide	340 mm (13-1/3")
Center Height	280 mm (11")
Distance Between Centers	1000 mm (40")	1500 mm (60")	2000 mm (80")	2500 mm (100")	3300 mm (132")	4300 mm (172")
Swing Over Gap	788 mm (31")
Width Of Bed	400 mm (15-3/4")
Spindle Nose	ASA D1 - 8 / D1 - 11 ( Opt. )
Spindle Bore	85 mm (3-1/3") / 120 mm (4-1/2") Opt. )
Taper of Spindle Bore	MT 7
Range of Spindle Speed	15 ~ 1500 R.P.M. ( 12 steps )-spindle bore :85mm /10 ~ 1000 R.P.M. ( 12 steps )-spindle bore :120mm
Inch Threads Range	2 ~ 56 T.P.I.
Metric Threads Range	P 0.5 ~ P 14
Longitudinal Feeds Range	0.05 ~ 0.82 mm (0.002-0.032")
Cross Feeds Range	0.02 ~ 0.4 mm (0.001-0.0094")
Leadscrew Diameter	38 mm (1-1/2")
Leadscrew Pitch	4 TPI or 6 mm
Taper of Tail Center	MT 5
Tail Spindle Travel	165 mm (6-1/2")
Tail Spindle Diameter	85 mm (3-1/3")
Main Drive Motor	10HP (7.5KW) / 15HP/6P (11KW) ( Opt. )
Coolant Pump	1/8 HP (0.1KW)
Compound Rest Travel	200 mm (8")
Cross Slide Travel	375 mm (14-3/4")
Machine Dimensions (cm)	238 x 103 x 126	290 x 103 x 126	347 x 103 x 126	398 x 103 x 126	473 x 103 x 126	555 x 103 x 126
Packing Dimension (cm)	252 x 115 x 193	300 x 115 x 193	361 x 115 x 193	426 x 115 x 193	485 x 115 x 193	588 x 115 x 193
Net Weight	2200	2550	2900	3150	3650	4860
Gross Weight	2300	2650	3050	3300	3800	5060

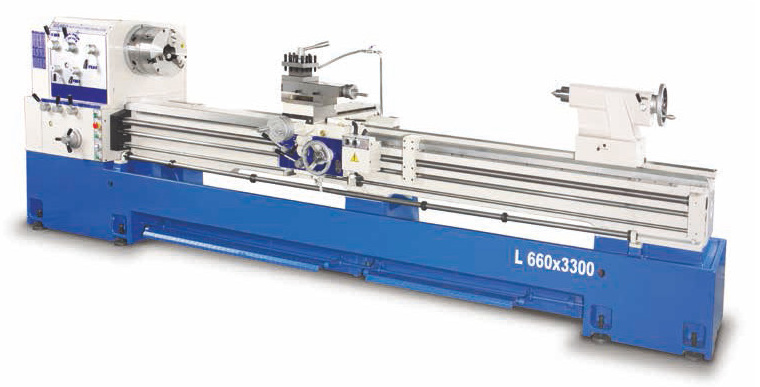

L 660 Series

L660 Series
Specifications / Model	L2640	L2660	L2680	L26100	L26120	L26160
Swing Over Bed	660 mm (26")
Swing Over Cross Slide	440 mm (17-1/3")
Center Height	330 mm (13")
Distance Between Centers	1000 mm (40")	1500 mm (60")	2000 mm (80")	2500 mm (100")	3300 mm (132")	4300 mm (172")
Swing Over Gap	890 mm (35")
Width Of Bed	400 mm (15-3/4")
Spindle Nose	ASA D1 - 8 / D1 - 11 ( Opt. )
Spindle Bore	85 mm (3-1/3") / 120 mm (4-1/2") Opt. )
Taper of Spindle Bore	MT 7
Range of Spindle Speed	15 ~ 1500 R.P.M. ( 12 steps )-spindle bore :85mm /10 ~ 1000 R.P.M. ( 12 steps )-spindle bore :120mm
Inch Threads Range	2 ~ 56 T.P.I.
Metric Threads Range	P 0.5 ~ P 14
Longitudinal Feeds Range	0.05 ~ 0.82 mm (0.002-0.032")
Cross Feeds Range	0.02 ~ 0.4 mm (0.001-0.0094")
Leadscrew Diameter	38 mm (1-1/2")
Leadscrew Pitch	4 TPI or 6 mm
Taper of Tail Center	MT 5
Tail Spindle Travel	165 mm (6-1/2")
Tail Spindle Diameter	85 mm (3-1/3")
Main Drive Motor	10HP (7.5KW) / 15HP/6P (11KW) ( Opt. )
Coolant Pump	1/8 HP (0.1KW)
Compound Rest Travel	200 mm (8")
Cross Slide Travel	375 mm (14-3/4")
Machine Dimensions (cm)	238 x 103 x 131	290 x 103 x 131	347 x 103 x 131	398 x 103 x 131	473 x 103 x 131	555 x 103 x 131
Packing Dimension (cm)	252 x 115 x 193	300 x 115 x 193	361 x 115 x 193	426 x 115 x 193	485 x 115 x 193	588 x 115 x 193
Net Weight	2280	2630	2980	3230	3730	4940
Gross Weight	2380	2730	3130	3380	3880	5140

L 760 SERIES

L760 Series
Specifications/Model	L3040	L3060	L3080	L30100	L30120	L30160
Swing Over Bed	760 mm (30")
Swing Over Cross Slide	540 mm (21-1/4")
Center Height	380 mm (15")
Distance Between Centers	1000 mm (40")	1500 mm (60")	2000 mm (80")	2500 mm (100")	3300 mm (132")	4300 mm (172")
Swing Over Gap	990 mm (39")
Width Of Bed	400 mm (15-3/4")
Spindle Nose	ASA D1 - 11
Spindle Bore	120 mm (4-1/2")
Taper of Spindle Bore	MT 7
Range of Spindle Speed	15 ~ 1500 R.P.M. ( 12 steps )-spindle bore :85mm /10 ~ 1000 R.P.M. ( 12 steps )-spindle bore :120mm
Inch Threads Range	2 ~ 56 T.P.I.
Metric Threads Range	P 0.5 ~ P 14
Longitudinal Feeds Range	0.05 ~ 0.82 mm (0.002-0.032")
Cross Feeds Range	0.02 ~ 0.4 mm (0.001-0.0094")
Leadscrew Diameter	38 mm (1-1/2")
Leadscrew Pitch	4 TPI or 6 mm
Taper of Tail Center	MT 5
Tail Spindle Travel	165 mm (6-1/2")
Tail Spindle Diameter	85 mm (3-1/3")
Main Drive Motor	15HP/6P (11KW)
Coolant Pump	1/8 HP (0.1KW)
Compound Rest Travel	200 mm (8")
Cross Slide Travel	375 mm (14-3/4")
Machine Dimensions (cm)	238 x 103 x 137	290 x 103 x 137	347 x 103 x 137	398 x 103 x 137	473 x 103 x 137	555 x 103 x 137
Packing Dimension (cm)	252 x 115 x 193	300 x 115 x 193	361 x 115 x 193	426 x 115 x 193	485 x 115 x 193	588 x 115 x 193
Net Weight	2360	2710	3060	3310	3810	5020
Gross Weight	2460	2810	3210	3460	3960	5220

L 830 SERIES

L830 Series
Specifications / Model	L3340	L3360	L3380	L33100	L33120	L33160
Swing Over Bed	830 mm (33")
Swing Over Cross Slide	610 mm (24")
Center Height	415 mm (16")
Distance Between Centers	1000 mm (40")	1500 mm (60")	2000 mm (80")	2500 mm (100")	3300 mm (132")	4300 mm (172")
Swing Over Gap	1060 mm (42")
Width Of Bed	400 mm (15-3/4")
Spindle Nose	ASA D1 - 11
Spindle Bore	120 mm (4-1/2")
Taper of Spindle Bore	MT 7
Range of Spindle Speed	15 ~ 1500 R.P.M. ( 12 steps )-spindle bore :85mm /10 ~ 1000 R.P.M. ( 12 steps )-spindle bore :120mm
Inch Threads Range	2 ~ 56 T.P.I.
Metric Threads Range	P 0.5 ~ P 14
Longitudinal Feeds Range	0.05 ~ 0.82 mm (0.002-0.032")
Cross Feeds Range	0.02 ~ 0.4 mm (0.001-0.0094")
Leadscrew Diameter	38 mm (1-1/2")
Leadscrew Pitch	4 TPI or 6 mm
Taper of Tail Center	MT 5
Tail Spindle Travel	165 mm (6-1/2")
Tail Spindle Diameter	85 mm (3-1/3")
Main Drive Motor	15HP/6P (11KW)
Coolant Pump	1/8 HP (0.1KW)
Compound Rest Travel	200 mm (8")
Cross Slide Travel	375 mm (14-3/4")
Machine Dimensions (cm)	238 x 103 x 141	290 x 103 x 141	347 x 103 x 141	398 x 103 x 141	473 x 103 x 141	555 x 103 x 141
Packing Dimension (cm)	252 x 115 x 193	300 x 115 x 193	361 x 115 x 193	426 x 115 x 193	485 x 115 x 193	588 x 115 x 193
Net Weight	2410	2760	3110	3360	3860	5070
Gross Weight	2510	2860	3260	3510	4010	5270
